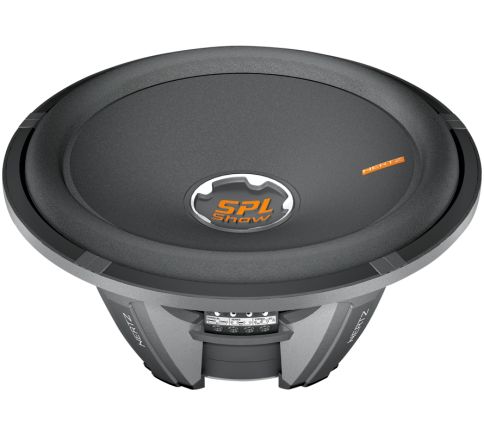

Hertz SPL Show SX 380D 15" 4000 Watt Car Audio Subwoofer

Hertz SPL Show SX 380D 15" 4000 Watt Car Audio Subwoofer

The Hertz SPL Show SX 380D car audio subwoofers are the ideal solution for building mobile audio systems with emphasis placed on low frequency power and impact. Featuring a stacked double magnet motor assembly and 2 + 2 Ohm dual voice coil, the three models, SX 250D, SX 300D, SX 380D differ only in their cone diameter: 250 mm, 300 mm, 380 mm respectively. The SPL Show moving assembly is designed to ensure long and linear excursion. They feature a dual spider design and an aluminium voice coil wound on a four-layer former. The back vented spider support decreases the voice coil operating temperature, even during enhanced SPL usage.

Technical Specification

• 380mm Subwoofer

• Woofer: 380mm

• Sensitivity: 91dB/SPL

• Impedance: Dual 2 Ohms

• Power Handling: 4000 Watts Peak Power, 1000 Watts

• Continuous

• Frequency response: 25-600Hz

• Voice coil: 65mm

• Magnet Double magnet High density flux ferrite

• Cone/Dome Pressed paper
