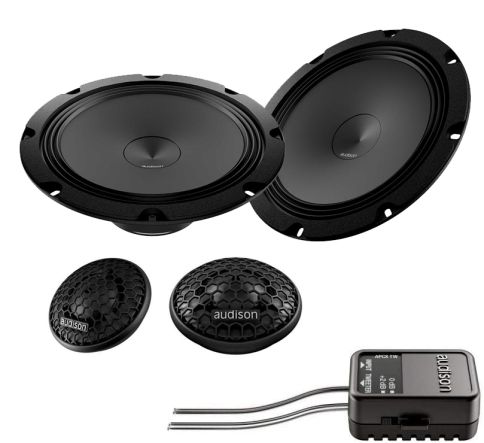

Audison Prima Component Speaker Package AP8 8 inch Speaker Subwoofer & AP 1 Tweeter Set 26mm

Audison Prima Car Audio Upgrade Package AP 8 Speakers 8 inch Subwoofer & AP 1 Tweeter Set 26mm 2-Way Component

This package contains:

• Audison Prima AP 8 Speakers 8 inch Subwoofer
• Audison Prima AP 1 Tweeter Set 26mm

Audison Prima AP 8 Speakers 8 inch Subwoofer

For the vehicles equipped with an 8 inch woofer as standard OEM component, the Audison Technical Department developed the AP 8 which, also thanks to the wide emission surface, provides higher energy in the low frequency range, ensuring excellent performance when the use of a subwoofer is prohibited due to space limitations.

Technical Specification

• Size mm (in.) 200 (8)
• Peak Power Handling 300Watts
• Continuous 100Watts
• Impedance 4 Ohm
• Frequency Response 35Hz - 3KHz
• Magnet size mm 90 x 40 x 17
• D x h (in.) (3.54 x 1.57 x 0.67)
• Weight of one speaker kg (lb) 1.2 (2.64)
• Voice Coil Ø mm (in.) 25 (1)

Audison Prima AP 1 Tweeter Set 26mm

The AP 1 tweeter features a 26 mm diameter emission diaphragm, an acoustic lens designed to compensate for the frequency response within the 10kHz – 13kHz range, a Neodymium REN magnet and extremely small sized dedicated passive crossover.

Technical Specification

• Size mm (in.) 26 (1)
• Peak Power Handling 150Watts
• Hi-pass filtered @ 3,5 kHz - 12 dB Oct
• Impedance 4 Ohm
• Frequency Response 2KHz - 20KHz
• Magnet size mm 19 x 3
• D x h (in.) (0.75 x 0.12)
• Weight of one speaker kg (lb) 0.04 (0.09)
• Weight of one crossover kg (lb) 0.04 (0.09)
• Voice Coil Ø mm (in.) 20 (0.8
