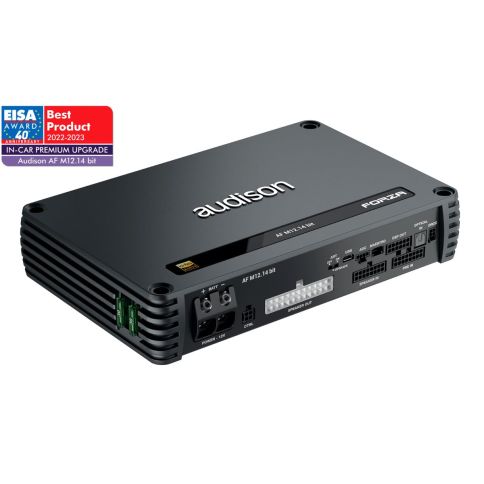

Audison AF M12.14 bit 12-Channel Amplifier with DSP - 1080W

Audison AF M12.14 bit 12-Channel Amplifier with DSP - 1080W

AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING

• Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
• Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
• Next-generation bit Drive software platform
• Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
• Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
• Up to 14 output channels (12 amplified, 2 native pre-outs) controlled by the DSP to expand the system with other amplifiers
• 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
• Extension card slot (additional 4 analog or 1 digital inputs)
• Electrical signal analysis for each input channel ensures proper integration and correction
• Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
• Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard

AUDIOPHILE SOUND YOU EXPECT FROM AUDISON

AF M12.14 bit boasts twelve high-fidelity amplified channels 60 x 12 @4Ω*, 90W x 12 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 180 x 6 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!

*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

NEXT-GENERATION TUNING CAPABILITIES FOR MAXIMUM CONTROL

Audison’s completely-new bit Drive PC software can analyze, route, and correct the signal in completely new ways – now you can measure, mix, and finally tune the sound with one powerful tool! The new Graphical User Interface simplifies every control and function, integrating acoustic measurement, and ensuring efficient tuning and great sound! The Acoustic RTA is integrated into the equalizer graph and is compatible with your USB microphone or sound card. The Final EQ function allows final equalization without damaging the delicate left/right frequency relationships. The two processed preamp outputs are in addition to the eight amplified channels, allowing Forza’s DSP section to manage a larger system easily.

AF M12.14 BIT INCLUDES A SET OF FOUR HIGH-QUALITY CABLES SUPPLIED WITH A PROTECTIVE PRINTED STRIP PLACED UPSTREAM OF THE MOLEX CONNECTORS TO INCREASE THE RESISTANCE TO TORSION

One 8 stereo RCAs interconnection for after-market sources with PRE-OUT outputs
One featuring 8 pairs of labeled cables for the connection to high-level output OEM sources
One includes twelve pairs of labeled cables to connect the speakers to the amplifier
One Control interconnection to control memory selection and remote power-on.

ADVANCED OEM INTEGRATION CAPABILITIES

Forza’s eight analog inputs, plus an optical Toslink digital input, support total connectivity even with the most complex OEM systems. If more analog inputs are required, the optional F4IN expansion card adds four additional analog input channels! If a Coaxial SPDIF or a second Toslink SPDIF input is needed, the optional F2O expansion card can be used. Audison’s classic de-EQ process is joined by de-Time and de-Phase capabilities, enabling sound restoration in nearly every OEM system., The electrical signal analysis ensures proper integration and correction for each input and output channel. The built-in universal speaker simulation technology (USS) yields maximum compatibility with any OEM Source, without muting or instability.

Specifications

• Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30A
• Pulse operating voltage: 6.5 ÷ 17.5 VDC
• Idling current: 1.68 A
• Standby current draw: 1.7 mA
• Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 45 A
• Remote IN: 4 ÷15 VDC (1 mA)
• Remote OUT: 6.5 ÷15 VDC (150 mA)
• ART – Automatic Remote Turn on/off from Speaker-In 1.5 VDC
• Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 80%
• Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.03%
• Damping factor @ 1 kHz , 4Ω, 2 VRMS: 80
• Bandwidth @ -3 dB 10 Hz ÷ 42 kHz
• S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 98 dBA
• S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
• Minimum load impedance: 12Ch: 2Ω
• 6Ch – (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12): 4Ω
• Output Continuous Power (RMS) @14.4 VDC, 1% THD:
• • 12 Ch @ 4Ω: 60 W x 12
• • 12 Ch @ 2Ω: 90 W x 12
• • 4Ch (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12) @ 4Ω: 180 W x 6
• Output power @ 4Ω, 1% THD+N, 14.4 V: 45 W
• SN ratio (ref. 1 W output): 75.5 dB
• Pre-In (8 Ch): 0.6 ÷ 6 VRMS (15 kΩ Imp.)
• Speaker-In (8 Ch + additional 4 Ch with optional F4IN card): 2.2 ÷ 22 VRMS (5 Ω Imp.)
• Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
• DSP Preout (2 Ch): 5V RMS
• Audio DSP and converters: Analog Devices ADAU1467 automotive qualified audio processor.
• Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A
• converters (24 bit/192 kHz) providing very high level performance
• Filter type: Full / High-Pass / Low-Pass / Band-Pass
• Filter mode and slope:
• Linkwitz-Riley @ 12/24/36/48 dB/Oct.
• Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
• Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
• Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
• QLP @ 6 dB/Oct.
• Crossover frequency: 20 Hz ÷ 20 kHz
• Phase control: 0° / 180°, All-Pass filters
• Analog Input Equalizer (20 Hz ÷ 20 kHz): 12 Biquad + Delay
• Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
• Input and Output Real Time Audio Monitor: RTA
• Time Alignment Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
• Time Alignment Delay: 0 ÷ 15 ms
• Audison DRCC port: Input for DRCC remote control (Optional)
• Audison ADC port: Manage other Audison devices that support this standard
• Control 1 wire: Customizable functions (+ 12 V activated)
• Control 2 wire: Customizable functions (+ 12 V activated
• PC connections: Micro USB 1.1 / 2.0 / 3.0 Compatible
• Software/ PC requirements: Windows 10, Windows 11 (min. res. 1024 x 768
• Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
• Max size W x H x D (mm/inch): 240 x 47 x 156 / 9.44 x 1.85 x 6.14
• Weight (kg/lb): 2,04 / 4.49

What is inside the box

• Audison AF M12.14 bit
• Pre In Cable
• Speaker Out Cable
• Speaker in Cable
• DSP Out Cable
• Control Cable
• USB Cable
