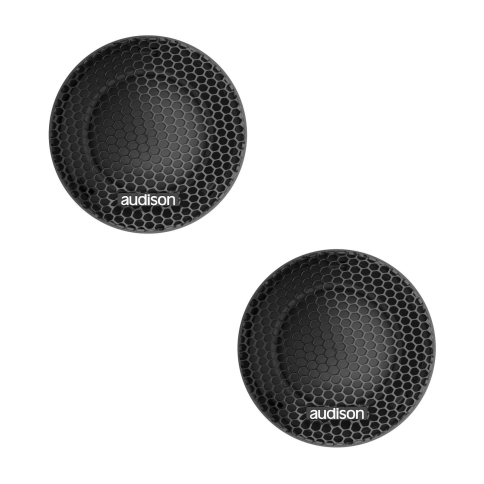

Audison Prima AP 1P Tweeter Component 1" 25mm Neodymium REN Magnet 150w Peak
£119.95
Availability:
In stock
SKU
Audison Prima AP 1P
Audison Prima AP 1P Tweeter Component 1" 25mm Neodymium REN Magnet 150w Peak
The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter component provides the installer with three different faceplates for total application versatility and a significant reduction in installation time. The double Neodymium tablet used in the motor provides an excellent extension in high frequency and together with the 1 in. CCAW voice coil ensures an outstanding dynamic response.
AIF technology, to support OEM integration, provides the specialist with three different types of faceplates:
- OEM, for an easy and correct factory placement
- Mesh grille: to obtain the best compromise between protection and performance with a-pillar installations.
- Spoke grille: for maximum acoustic performance with a-pillar installations
Thanks to the AIF, the AP 1P tweeter expresses its full potential in every application scenario.
It is supplied with three mounting accessories that make the AP 1P install a breeze:
- Watch band;
- Double-angle cup;
- Flush Mounting Ring;
- Metal mounting spring
TECHNICAL SPECS
| Size | 25 mm |
| Power Handling - Peak | 150 W |
| Power Handling Crossover | Hi-pass filtered @2.5 kHz 12dB/oct |
| Impedance | 4 Ohm |
| Frequency Response | 1,2 ÷ 25k Hz |
| Crossover name | APCX P 2T |
| Crossover Type | High Pass 12 dB/oct. |
| Crossover point | 4 kHz |
| Crossover adjustment | Tweeter Level: 0 / +3 dB |
| Magnet Material | NEODYMIUM |
| Voice Coil Ø | 25 mm |
| Woofer Qes | 1.74 |
| Dome Material | TELOTON FIBRE |
| Description | Audison Prima AP 1P Tweeter Component 1" 25mm Neodymium REN Magnet 150w Peak The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter component provides the installer with three different faceplates for total application versatility and a significant reduction in installation time. The double Neodymium tablet used in the motor provides an excellent extension in high frequency and together with the 1 in. CCAW voice coil ensures an outstanding dynamic response. AIF technology, to support OEM integration, provides the specialist with three different types of faceplates:
Thanks to the AIF, the AP 1P tweeter expresses its full potential in every application scenario. It is supplied with three mounting accessories that make the AP 1P install a breeze:
TECHNICAL SPECS
|
|---|
