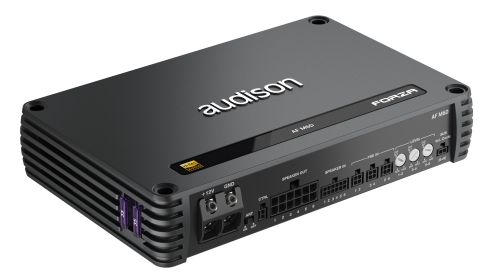

Audison Forza AF M6D Amplifier 6 Channel Bridgeable Class D Amp 1320w RMS
£749.95
Availability:
In stock
SKU
Audison Forza AF M6D
Audison Forza AF M6D Amplifier 6 Channel Bridgeable Class D Amp 1320w RMS
AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING
- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 81% of efficiency
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz
- Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AF M6D boasts six high-fidelity amplified channels 135W x 6 @4Ω*, 220W x 6 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440W x 3 @4Ω*, guaranteeing flexible and powerful performance.
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
ALL IN ONE STATE-OF-THE-ART PLATFORM!
AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso.
AF companions have a “straight wire” architecture, without analog preamp functions such as crossover filtering, and are intended for use with external processors. AF M6D boasts six high-fidelity amplified channels 135W x 6 @4Ω*, 220W x 6 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology.
Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440W x 3 @4Ω*, guaranteeing flexible and powerful performance.*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
Specifications
- Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 35A
- Pulse operating voltage: 6.5 ÷ 17.5 VDC
- Idling current: 1.0 A
- Standby current draw: 0.009 mA
- Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 67 A
- Remote IN: 4 ÷15 VDC (1 mA)
- Remote OUT: 6.5 ÷15 VDC (150 mA)
- ART – Automatic Remote Turn on/off from Speaker-In 1.5 VDC
- Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels 81%
- Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.04%
- Damping factor @ 1 kHz , 4Ω, 2 VRMS: 160
- Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
- S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 103 dBA
- Minimum load impedance: 6Ch: 2Ω 3 Ch – (Bridge 1/2; 3/4; 5/6): 4Ω
- Output Continuous Power (RMS) @14.4 VDC, 1% THD:
- • 6 Ch @ 4Ω: 135 W x 6
- • 6 Ch @ 2Ω: 220 W x 6
- • 3Ch (Bridge 1/2; 3/4; 5/6) @ 4Ω: 440 W x 3
- Output power @ 4Ω, 1% THD+N, 14.4 V: 130 W x 4
- SN ratio (ref. 1 W output): 80 dB
- Inputs Pre-In / Speaker-In
- Input sensitivity Pre-In 0.6 ÷ 6 VRMS
- Input sensitivity Speaker-In 2.2 ÷ 22 VRMS
- SUB remote Volume Control (optional) ±12 dB
- Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
- Max size W x H x D (mm/inch): 240 x 47 x 156 / 9.44 x 1.85 x 6.14
- Weight (kg/lb): 1.95 / 4.3
| Description | Audison Forza AF M6D Amplifier 6 Channel Bridgeable Class D Amp 1320w RMS AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING
AUDIOPHILE SOUND YOU EXPECT FROM AUDISONAF M6D boasts six high-fidelity amplified channels 135W x 6 @4Ω*, 220W x 6 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440W x 3 @4Ω*, guaranteeing flexible and powerful performance. *Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven. ALL IN ONE STATE-OF-THE-ART PLATFORM!AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF companions have a “straight wire” architecture, without analog preamp functions such as crossover filtering, and are intended for use with external processors. AF M6D boasts six high-fidelity amplified channels 135W x 6 @4Ω*, 220W x 6 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440W x 3 @4Ω*, guaranteeing flexible and powerful performance.*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven. Specifications
|
|---|
