OBD2 CarStereo Auto BT Diagnostic Scanner Tool OBD2 CANBUS Android STEREOS

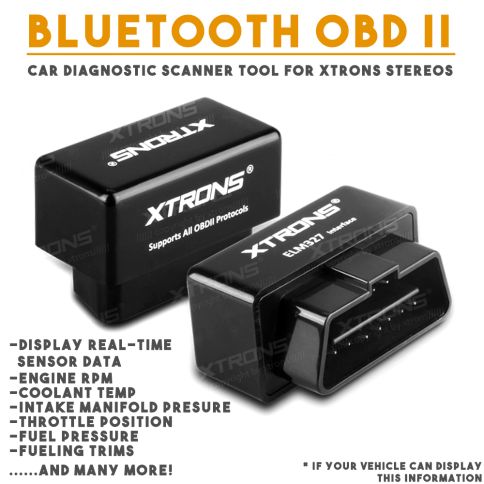

Bluetooth OBD2 II Car Auto Diagnostic Scanner Tool for Android Headunits

Perfect Fit for XTRONS

• PF61HGTA
• PF63HGTA
• PF69HGTA
• PF7246BA
• PF7346BA
• PF7239BA
• PF7353BA
• PF72AA3A
• PF73AA3A
• PF72AA4A
• PF73AA4A
• PF71FSFA-S
• PF72FSFA-S
• PF71OLOA-G
• PF71OLOA-B
• TD626A
• TD626AS
• TD696A
• PF7M245A
• PF7M203A
• PF7M211A
• PF7390BA
• PF83MTVA
• PF70FSFA-B.

Note: The OBD2 App is in our unit.

Description:
The Mini Bluetooth OBDII scanner is an engine performance and diagnostics tool for both automotive enthusiasts and professionals. Paired with your Xtrons Android Campatible Headunit, the Mini Bluetooth allows you to easily scan and clear engine codes, view and save real-time engine data and much more.

Features:

• Clear engine codes and check engine lights
• Connect to a Bluetooth enabled computer using the supplied software or an Android smartphone using one of the many free compatible apps
• View real-time vehicle data while driving
• Find and fix problems before they happen
• Connects wireless via Bluetooth up to 3 meters (no cable connection)
• Compatible with all OBD II compliant vehicles
• The latest Printed Circuit Board (PCB) and smallest module design
• Dimensions: 48 x 25 x 32 mm
• Bluetooth Pairing Password: 1234

Latest Multi-Protocol Support:

• SAE J1850 PWM (41.6 kbaud)
• SAE J1850 VPW (10.4 kbaud)
• ISO 9141-2 (5 baud init, 10.4 kbaud)
• ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
• ISO 14230-4 KWP (fast init, 10.4 kbaud)
• ISO 15765-4 CAN (11 bit ID, 500 kbaud)
• ISO 15765-4 CAN (29 bit ID, 500 kbaud)
• ISO 15765-4 CAN (11 bit ID, 250 kbaud)
• ISO 15765-4 CAN (29 bit ID, 250 kbaud)
• SAE J1939

Vehicle Coverage:

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

Alfa Romeo / Audi / Bentley / BMW / Cadillac / Chevrolet / Chrysler / Citroen / Daewoo / Fiat / Ford / GM /Honda / Hyundai / Isuzu / Jaguar / Jeep / Kia / Land Rover / Lexus / Mazda / Mercury / Mini / Mitsubishi / Opel / Peugeot / Porsche / Renault / Rover / Saab / Seat / Skoda / Toyota / Vauxhall / Volvo / VW

With the appropriate apps, perform the following operations:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display code descriptions with over 3000 universal code definitions in the database
Clear trouble codes and check engine lights

• Display real-time sensor data, including:
• Engine RPM
• Coolant Temperature
• Calculated Load Value
• Fuel System Status
• MPH Speed
• Short Term Fuel Trim
• Long Term Fuel Trim
• Intake Manifold Pressure
• Timing Advance
• Intake Air Temperature
• Air Flow Rate
• Absolute Throttle Position
• Oxygen Sensor Voltages/Associated Short Term Fuel Trims
• Fuel System Status
• Fuel Pressure

Software Included:

• Scantool_net113win (Full Version)
• EasyOBDII V2.2 (Full Version)
• OBD2Spy (Demo Version)
• ScanMaster-ELM (Demo Version)
• OBDCRAZY (Demo Version)
• TORQUE (Android system cell phone)
• OBDscope software (Symbian system cell phone)
• This hardware can match many other software still! But most are not free

Package including:

• 1 x OBD scan tool

*** THIS IS NOT FOR USING WITH MOBILE PHONES ***
