Brake Light Reversing Reverse Camera For 2016> Mercedes Vito model

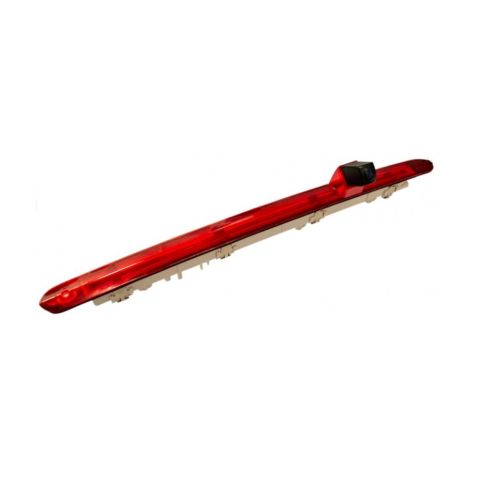

Mercedes Vito brake light camera, which can be fitted for new 2016 Mercedes Vito model

This rear view camera for the Mercedes Vito provides a unique solution for operators requiring a high quality rear view camera solution that also has the benefit of looking, without doubt the most aesthetically pleasing product available on the market. This bespoke camera replaces the high level brake light, thus keeping the height of the camera below the roof line and saves drilling any holes, which may cause corrosion and water ingress at a later date. No warranty issues to worry about!

With cameras becoming more common on these vehicles owing to health and safety requirements, duty of care and limitations with conventional park assist where the rear step is installed, this is the ideal solution for fleet and owner-driver fleets alike.

Specification

• Image Type – 1/3″Color
• TV System – NTSC
• Lens Angle (Deg.) – 170 degree
• IP Rating – IP69K
• Vibration Rate – 10G
• Connector 4P BMW to 4P lock connector
• Effective Pixels N: 510×492 pixels P: 500×582 pixels
• Horizontal Resolution 700TVL
• White Balance Auto White Balance (Auto)
• B.L.C Back light Compensation (Auto)
• Minimum Illumination 0Lux (LED ON)
• S/N Ratio ≧48dB
• Electronic Shutter 1/60~1/100,000 Sec
• Power consumption <3W
• Built-in Lens f: 2.8mm
• Power Consumption DC 12V (+/-10%)
• Audio without Operation Temperature -30°C~+70°C.RH95% Max
• Storage Temperature -40°C~+80°C.RH95% Max

Suitable For:

• Mercades Vito 2016
