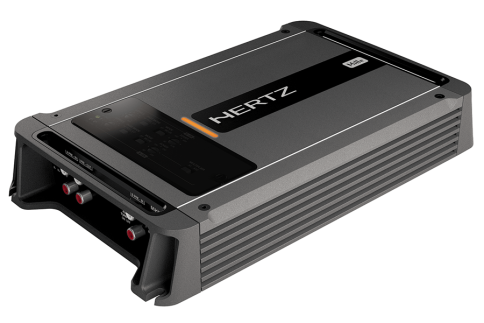

Hertz ML Power 4 D-Class 4 Channel Amplifier 1000W RMS

Hertz ML Power 4 D-Class 4 Channel Amplifier 1000W RMS

Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency. The Hertzaudio car amplifier ML Power 4 (4 x 250 W 2 Ω) is the obvious choice for a top level front-rear Mille system.

Technical Specification

• Channel mode: 4 - 3 - 2
• Output Power (RMS) @ 14.4 VDC:
• 4 Ch 150 W x 4 (4 ohm)
• 4 Ch 250 W x 4 (2 ohm)
• 3 Ch 150 W x 2 (4 ohm) + 500 W x 1 (4 ohm)
• 3 Ch 250 W x 2 (2 ohm) + 500 W x 1 (4 ohm)
• 2 Ch 500 W x 2 (4 ohm)
• Filters: Bypass, Hi-Pass (A: 50 - 5k @ 12 dB/Oct. - B: 80 - 3.3k Hz
• @ 12 dB/Oct.), Lo-Pass (A: 50 - 5k @ 12 dB/Oct. - B: 80 - 3.3k Hz
• @ 12 dB/Oct.)
• Distortion - THD (100Hz @ 4 ohm): 0.08 %
• S/N Ratio (A weighted @ 1V): 100 dB
• Damping factor (100Hz @ 4 ohm): 80
• Size W x D x H mm (in.): 170 x 289 x 46.70 (6.69' x 11.38' x 1.84')
