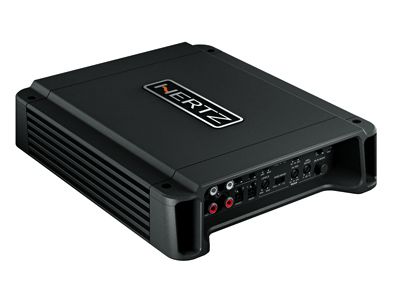

Hertz HCP 4D 4 Channel 1160 Watts Class D Amplifier for Car Speakers

£279.95

Availability:

In stock

SKU

Hertz HCP 4D-1

Hertz HCP 4D

FOUR CHANNEL D-CLASS AMPLIFIER WITH CROSSOVER 1160 Watts MAX POWER

THE Hertz HCP 4D is a D Class amplifier offering up to 1160 Watts it is the ideal choice for those who want high power levels in complex systems.

Technical Specification

More Information
Description	Hertz HCP 4D FOUR CHANNEL D-CLASS AMPLIFIER WITH CROSSOVER 1160 Watts MAX POWER THE Hertz HCP 4D is a D Class amplifier offering up to 1160 Watts it is the ideal choice for those who want high power levels in complex systems. Technical Specification Output Power (RMS) @ 14.4 VDC, THD 1%: 4 Ch: 75 W x 4 (4 Ohms) 4 Ch: 130 W x 4 (2 Ohms) 3 Ch: 75 W x 2 (4 Ohms) + 260 W x 1 (4 Ohms) 3 Ch: 130 W x 2 (2 Ohms) + 260 W x 1 (4 Ohms) 2 Ch: 260 W x 2 (4 Ohms) Output Power (RMS) @ 14.4 VDC, THD 10%: 4 Ch: 85 W x 4 (4 Ohms) 4 Ch: 145 W x 4 (2 Ohms) 3 Ch: 85 W x 2 (4 Ohms) + 290 W x 1 (4 Ohms) 3 Ch: 145 W x 2 (2 Ohms) + 290 W x 1 (4 Ohms) 2 Ch: 290 W x 2 (4 Ohms) Filters Bypass Yes Hi-Pass A/B: 50 ï¿½ 3.2k Hz @ 12 dB/Oct. Lo-Pass A/B: 50 ï¿½ 3.2k Hz @ 12 dB/Oct. Band-Pass Yes Distortion - THD (100Hz @ 4 Ohm) 0.02% S/N Ratio (A weighted @ 1V) 100 dB Damping factor (100Hz @ 4 Ohm) 200 Size W x D x H mm (in.) 215 x 190 x 50 (8.46 x 7.48 x 1.97)
