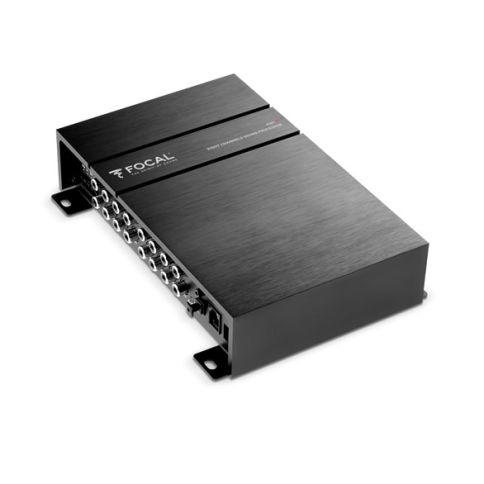

Focal FSP-8 8 Channel Sigital Sound Processor
£649.99
Availability:
In stock
SKU
FSP-8
Focal FSP-8 8 Channel Sigital Sound Processor
FSP-8 is the ultimate digital tool to optimise and shape the audio signal... High-resolution sound quality, compatible inputs/outputs, a user interface designed for and by acoustic experts, FSP-8 is the ultimate tool for the most demanding installations.
How could we create the best product on the market for connecting your head unit to your amplifier system? How could we make it possible for you to shape and fine-tune the audio spectrum to create your very own musical experience?
Even if most vehicles today are equipped with a standard audio system, the most demanding sound enthusiasts want unique, high-quality audio for their car.
They want to build their system, step by step and have full control over each element of the audio story. The DSP (Digital Signal Processor) is an essential tool in achieving this.
Key points
- Compatible with all head units
- High-resolution digital input (24 bits/192kHz)
- Unique and intuitive user interface Focal DSP Manager
- Remote control (sold separately)
Inputs
- Low-level input sensitivity (Analog and Aux) 1.2V – 4.9V
- High-level input sensitivity (Analog and Aux)4.8V – 20.6V
- Digital input formats supported (optical)up to 24 bits/192kHz
Outputs
- Number of channels 8
- Max. output (with 10kΩ) level3.4V
- Frequency response (digital crossover off/-3dB)5Hz - 21kHz
- Signal/noise ratio -90dBa (analogue input)-99dBa (optical)
- Harmonic distortion - 10kΩ - @1kHz (with 22kHz low-pass filter) 0.02%
- Crosstalk - 4Ω - @1kHz-78dB
- Gain adjustment range 64dB
- Equaliser 10 bands, each fully customisable for each channel
- Adjustable high-pass crossover 16Hz - 20kHz
- Adjustable low-pass crossover 16Hz - 20kHz
- Adjustable bandpass crossover 16Hz - 20kHz
- Latency adjustment range 0-22ms per channel
- Latency adjustment steps 0.1ms
- Phase inverter
General
- Easy Configuration
- Dynamic help
- Power consumption on standby (product on, no signal, 14.4 Vin) 0.7a(0.73 a with remote)
- Power consumption OFF (14.4 Vin, remote OFF)< 50μa
- Remote control sold separately
- Protection Polarity inverter
- Weight 3lbs (1.35kg)
- Dimensions : (LxWxH)89/16"x57/16"x17/8" (21.8cmx13.8cmx4.8cm)
