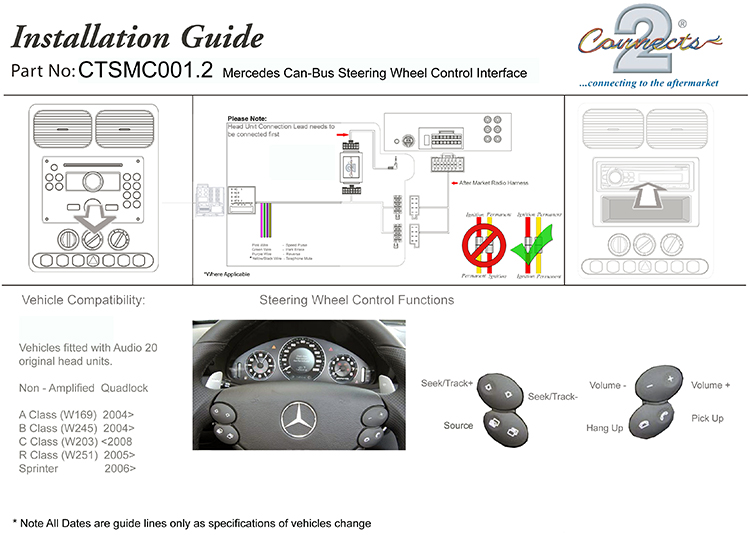

CTSMC001.2 Mercedes A B C R Class Sprinter Viano Steering Wheel Interface

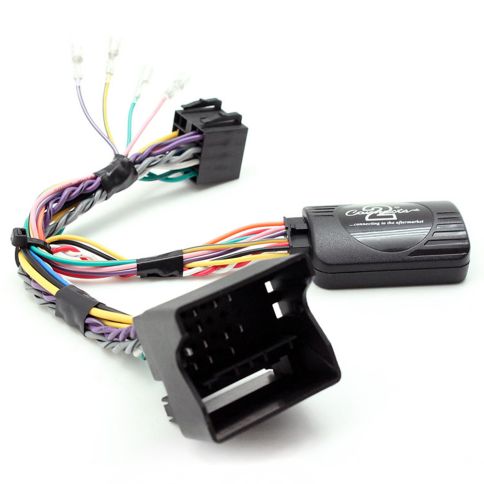

The CTSMC001.2 Steering Wheel Interface allows you to change the factory original headunit to an aftermarket car stereo whilst maintaining the use of your factory stalk/steering controls.

Compatible with:

fitted with 40 Quadlock Connector and the Audio 20/10 headunit (NON AMPLIFIED)

• Mercedes A Class   (2005 - 2012)
• Mercedes B Class   (2005 - 2012)
• Mercedes C Class W203  (2004 - 2007)
• Mercedes R Class   (2005 - 2012)
• Mercedes Sprinter
• Mercedes Viano
• Mercedes CLK W209
• Mercedes ML W164

 Depending on the brand of your new headunit, you will need to choose a specific car stereo patch lead to complete the installation of this adaptor.

The stalk adaptor can be used with the following:

• Alpine
• Beat
• Blaupunkt
• Clarion
• JVC  (headunit with 3.5mm jack or single wire)
• JVC3LEAD (for JVC KW-AVX Series Stereos )
• LG
• Kenwood
• Panasonic
• Pioneer
• Sony
• Zenec

For the chinese branded headunit you have a further choice of 2 Patch Leads,

• 2 Wire Resistive Learning
• 3.5mm Jack Learning

This will depend on the headunit type, most chinese brand stereos have 3 wires marked SW1, SW2, GND.  This is the 2 Wire Resistive Learning Type Patch Lead.  Then there are those that uses 3.5mm Jack (headphone) type connection, for this one you need to choose the 3.5mm Jack Learning Patch Lead.

The interface also provides the following outputs:

• Ignition Swtiched Feed
• Illumination
• Speed Pulse
• Reverse Output

Note:

We make every effort to make sure that the information provided is correct.  If you are not sure on the suitability of the product, remove the original headunit and compare the original connector in the vehice to the photo to make sure it is the same.......

If you are still note sure, then simply contact our customer services.
