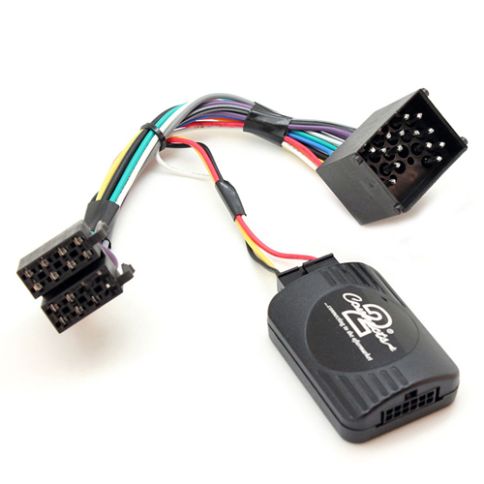

CTSBM003.2 BMW 3 5 7 Series Z3 Steering Wheel Interface Stalk Control Adaptor

The CTSBM003.2 Steering Wheel Interface allows you to change the factory original headunit to an aftermarket car stereo whilst maintaining the use of your factory stalk/steering controls.

Compatible with:

Vehicle with 17 Pin Round Connector & Business headunit

• BMW 3 Series E46   (1999 - 2004)
• BMW 5 Series E39   (1999 - 2004)
• BMW 7 Series   (upto 2004)
• BMW Z3   (1998  2002)

Depending on the brand of your new headunit, you will need to choose a specific car stereo patch lead to complete the installation of this adaptor.

The stalk adaptor can be used with the following:

• Alpine
• Beat
• Blaupunkt
• Clarion
• JVC  (headunit with 3.5mm jack or single wire)
• LG
• Kenwood
• Panasonic
• Pioneer
• Sony
• Zenec
• Chinese Branded Head units

For the chinese branded headunit you have a further choice of 2 Patch Leads,

• 2 Wire Resistive Learning
• 3.5mm Jack Learning

This will depend on the headunit type, most chinese brand stereos have 3 wires marked SW1, SW2, GND.  This is the 2 Wire Rsistive Learning Type Patch Lead.  Then there are those that uses 3.5mm Jack (headphone) type connection, for this one you need to choose the 3.5mm Jack Learning Patch Lead.

Note:

We make every effort to make sure that the information provided is correct.  If you are not sure on the suitability of the product, remove the original headunit and compare the original connector in the vehice to the photo to make sure it is the same.......

If you are still note sure, then simply contact our customer services.
