CTSAD00C.2 Audi A3 A4 TT Steering Wheel Interface Stalk Control Adaptor

The CTSAD00C.2 Steering Wheel Interface allows you to change the factory original headunit to an aftermarket car stereo whilst maintaining the use of your factory stalk/steering controls.

Compatible with:

• Audi A3   (2003 - 2012)
• Audi A4   (2002 - 2009)
• Audi A6   (2004)
• Audi TT   (2006 - 2012)
• Supplied with Both  Quadlock Connector & ISO Connector for Concert, Chorus, Symphony headunit

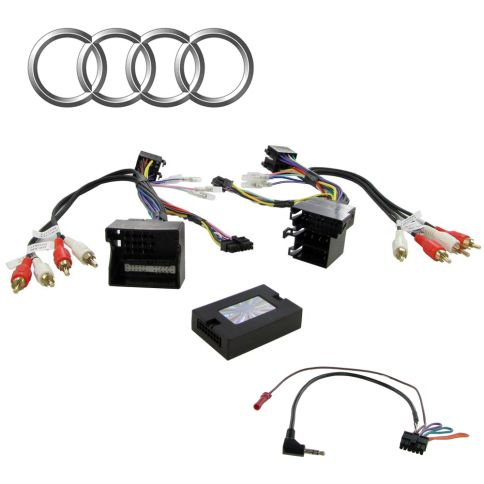

The Interface consist of two parts; The Steering Wheel Interface and the Car Stereo Patch Lead.

The Patch Lead Supplied  can be used with the following:

• Alpine
• Beat
• Clarion
• JVC  (headunit with 3.5mm jack or single wire)
• LG
• Kenwood
• Panasonic
• Pioneer
• Sony
• Zenec
• Chinese Branded Headunits

For the chinese branded headunit you have to configure the patch lead according to what your head unit requires:

• 2 Wire Resistive Learning
• 3.5mm Jack Learning

This will depend on the headunit type, most chinese brand stereos have 3 wires marked SW1, SW2, GND.  This is the 2 Wire Resistive Learning Type Patch Lead.  Then there are those that uses 3.5mm Jack (headphone) type connection, for this one you need to choose the 3.5mm Jack Learning Patch Lead.

Note:

We make every effort to make sure that the information provided is correct.  If you are not sure on the suitability of the product, remove the original headunit and compare the original connector in the vehice to the photo to make sure it is the same.......

If you are still note sure, then simply contact our customer services.
