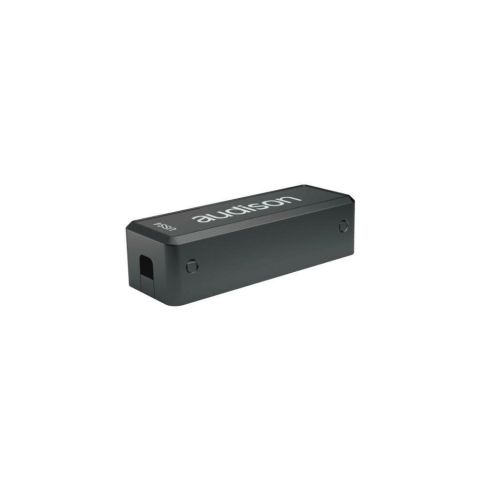

Audison USS4 Universal Speaker Simulator Interface without Power Supply

Audison USS4 Universal Speaker Simulator Interface without Power Supply

Some OEM sources/head-units have a test circuit that monitors the presence of a low-impedance load to enable audio outputs. When you connect this type of head-unit to the high-level inputs of an Audison bit processor, which has a high impedance load, audio outputs are silenced. By inserting the USS 4 between the source and the processor / amplifier, these problems are definitively solved. If there is a need to generate a remote signal to control the amplifier turn on/off, it is necessary to power* the USS4, providing the additional feature of the possibility to delay the signal from 1 to 8 seconds, so as to avoid annoying “bumps” upon ignition.

Technical Specification

• 4 Input/Output Channels
• Power Max 50 W
• Input Impedance 12 Ohm
• Output Impedance 12 Ohm
• Remote Out (only with 12 VDC Power Supply) 12 VDC 150 mA
• Remote Out Delayed (only with 12 VDC Power Supply) 12 VDC 150 mA; 1 to 8 sec.
• Weight (gr / lb.) 90 / 0.19
