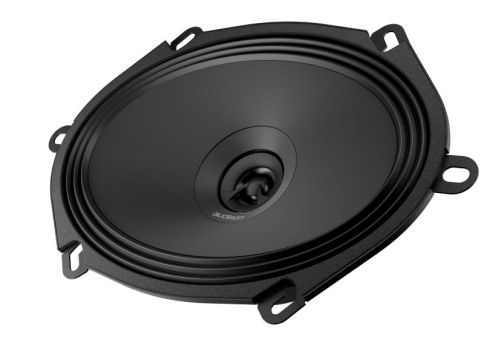

Audison Prima APX 570 5X7" Car Coaxial Door Speakers 70W RMS

Audison Prima APX 570 5X7" Car Coaxial Door Speakers 70W RMS

APX 570 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.
The 5×7″ cones surround features an exclusive shallow “Triple Wave” profile, for maximum excursion linearity.

Features

• Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.

• 32 mm pure copper voice coil, for high power handling and outstanding low frequency control

• Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.

• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.

• TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.

• Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.

• High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.

• Developed with the KLIPPEL suite.


Technical Specifications

• Component - 2 Way Coaxial

• Size - Woofer (5 x 7"), Tweeter 24mm (0.9")

• Power Handling - 210W peak, 70W continuous

• Impedance - 4Ω

• Frequency Response - 60 ÷ 23kHz

• Magnet size - 85mm x 40mm x 15mm, (3.35" x 1.57" x 0.59")

• Weight of one speaker - 0.885kg (1.95 lb)

• Woofer Voice Coil Ø - 32mm (1.26")

• Tweeter Voice Coil Ø - 15mm (0.6")
