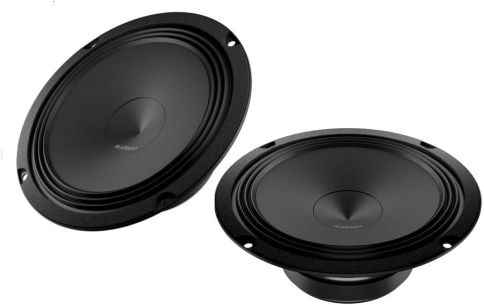

Audison AP 6.5" Car Midbass Door Speakers 70w RMS

Audison AP 6.5" 17cm Car Midbass Dash Door Speakers 70w RMS

AP 6.5 feature a 32 mm pure copper voice coil, for high power handling and outstanding low frequency control. All the woofer don’t employ any filter, to maximize efficiency: the dome profile has been optimised with Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency. The surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.

To maximize the woofer efficiency achieving 95 dB, a 25 mm diameter 10 mm winding height coil, so a more lightweight coil, has been employed, at the same time also providing a linear excursion 2.8 mm higher than the one of AP 6.5 (4Ω), therefore ensuring high SPL values with minimum distortion even at high listening levels. To extend the woofer’s frequency range down to low frequencies up to 50 Hz a 75 Hz resonance frequency has been chosen, achieving excellent low frequency output even without the use of a subwoofer.

Tecnical Data

• Comp Woofer
• Size 165 mm (6,5″)
• Power Handling 70 W Continuous Power
• 210 W Peak Power
• Impedance 4 Ω
• Frequency Response 60 ÷ 5k Hz
• Sensitivity 93,5 dB/Spl
• Magnet High density flux ferrite
• Dome Water-repellent treated paper cone
