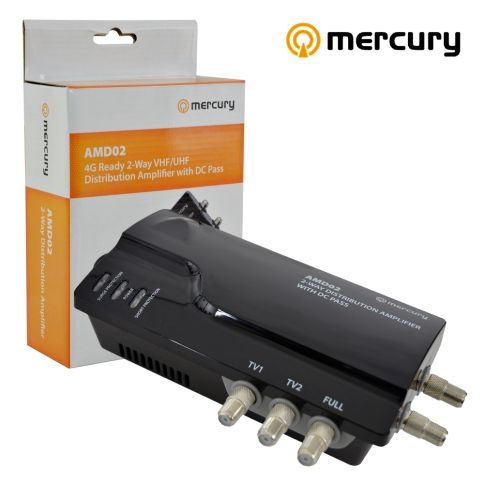

2 Way TV Aerial Distribution Amplifier–4G Amp Splitter Booster F-type Coaxial DC

4G READY VHF/UHF DISTRIBUTION AMPLIFIERS WITH DC PASS

Distribution amplifiers with built in 4G LTE filter, designed to improve the quality of audio and video by amplifying weak VHF/UHF signals and distributing them across a designated area. Suitable for both professional and domestic systems.

Features:

• Coaxial socket connection, F socket adaptors included to allow F-Type connection
• Integrated LTE signal filter avoids interference and channel loss from 4G mobile signals
• Built in low noise amplifier with wideband output
• Built in surge and short circuit protection, and maximum output limiter prevents overload
• Separate inputs for VHF and UHF
• Additional high gain output for additional distribution connection
• DC pass allows the control of satellite via Magic Eye remote extender (124.157)
• Side mounted terminals allow easy cable management

No. of Output: 2 out + Full
Max. output level: 94dBuV
Gain per split: 12dB
No. of outputs: 2 + Full (3 x coax sockets)
Supplied with: 2pcs F-Type Adaptor
Dimensions: 135 x 70 x 45mm
Weight: 270g

Specifications:

• Power: 230Vac, 50Hz
• Frequency range : VHF: 47 - 230MHz
• Frequency range : UHF: 470 - 790MHz
• Full gain output: 20dB
• Isolation: 22dB
• Impedance: 75 Ohms
• Noise: <3.8dB
• Input: 2 x coax sockets
• Power cable length: 1.0m
